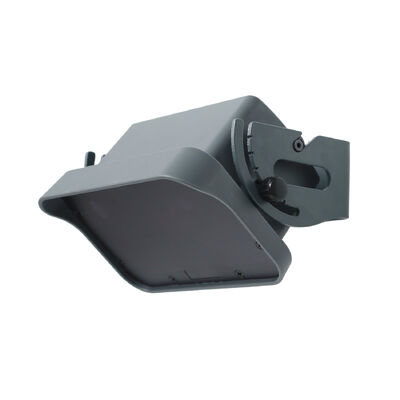

RVP42-7M Anti-Interference Industrial Radar Sensor for Factory Workshop Rolling Shutter Door
| محل منبع | چین |
|---|---|
| نام تجاری | JUTAI |
| گواهی | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| شماره مدل | RVP42-7m |
| مقدار حداقل تعداد سفارش | 1 |
| قیمت | negotiable |
| جزئیات بسته بندی | کارتون |
| زمان تحویل | 5-8 روز |
| شرایط پرداخت | T/T ، L/C ، D/A ، D/P ، Western Union ، PayPal ،، MoneyGram ، Alipay |
| قابلیت ارائه | 1000 قطعه در ماه |
جزئیات محصول
| اصل رادار | رادار داپلر مسطح 24.125 گیگاهرتز | تشخیص وسیله نقلیه | 95% دقت بالا |
|---|---|---|---|
| منبع تغذیه | 12-36 ولت DC، <100 میلی آمپر | درجه حفاظت | IP65 ضد گرد و غبار و ضد آب |
| دمای کاری | -30℃ ~ +60℃ | ارتفاع کوه | 2 متر تا 7 متر قابل تنظیم |
| زمان پاسخگویی | <50 میلی ثانیه فوق سریع | حالت خروجی | تماس خشک رله |
| ضد مداخله | فیلتر چند مرحله ای قابل تنظیم | عملکرد کارخانه | باز شدن درب غلتکی |
| برجسته کردن | industrial radar sensor anti-interference,rolling shutter door motion sensor,factory workshop radar sensor,rolling shutter door motion sensor,factory workshop radar sensor |
||
توضیحات محصول
RVP42-7M Anti-Interference Industrial Radar Sensor for Factory Workshop Rolling Shutter Doors
Product Overview
The RVP42-7M is a rugged, high-precision 24GHz Doppler radar motion sensor built to meet the challenges of busy factory workshop environments. Featuring advanced planar radar technology and digital signal processing, it provides dependable detection of moving vehicles, forklifts, and personnel in front of rolling shutter doors. With strong anti-interference capabilities, intelligent target discrimination, and extreme environmental resistance, the RVP42-7M ensures that heavy-duty industrial doors operate safely, efficiently, and with minimal downtime.
Key Benefits for Factory Rolling Shutter Doors
-
Reliable Vehicle & Personnel Detection – Accurately identifies forklifts, pallet trucks, and workers approaching the door.
-
Direction-Sensitive Logic – Differentiates between entry and exit movements, reducing unnecessary activations.
-
High Immunity to Interference – Suppresses electromagnetic noise from motors, inverters, welding equipment, and LED lighting.
-
Extreme Environment Durability – IP65-rated housing, -30°C to +60°C operating range, and humidity resistance for cold storage and hot workshops alike.
-
Ultra-Fast Response – Less than 50ms reaction time for immediate door actuation, improving workflow efficiency.
-
Minimal False Alarms – Advanced lateral motion filtering blocks side-to-side movement, ensuring only relevant traffic triggers the door.
Technical Specifications Table
|
Parameter |
Specification |
|---|---|
| Frequency Band | 24.125 GHz Doppler Radar |
| Radar Type | Planar Module |
| Transmit Power | <20 dBm |
| Power Supply | 12–36V DC |
| Operating Current | <100 mA |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | 0%–95% RH (non-condensing) |
| Mounting Height | 2 m – 7 m |
| Maximum Detection Speed | 25 km/h (vehicles) |
| Response Time | <50 ms |
| Relay Output | 1 channel, NO/NC configurable |
| Relay Load Capacity | Max 125V AC 1A / 60V DC 1A |
| Cable Length | 7 m (pre-wired) |
| Protection Rating | IP65 |
| Housing Material | Anodized Aluminum + Polycarbonate |
| Dimensions | 164 mm × 111 mm × 94.5 mm |
| Weight | 630 g |
| Sensitivity Levels | 5 steps (Low → High) |
| Relay Hold Time Options | 0.2 s / 0.5 s / 1.0 s / 2.0 s / 5.0 s / Continuous / Off |
| Lateral Motion Filter | 4 levels (Off / Low / Medium / High) |
| Anti-EMI Mode | 2 levels (Off / On) |
| Certifications | CE, RoHS, FCC, ISO Compliant |
Functional Highlights for Rolling Shutter Door Automation
-
Smart Activation Logic – Supports nine detection modes including vehicle/pedestrian forward, reverse, and bidirectional movement.
-
Anti-Interference Technology – Two-stage EMI suppression neutralizes electrical noise from common factory equipment.
-
Lateral Movement Blocking – Prevents false triggers caused by people or objects moving across the door’s side.
-
Configurable Relay Timings – Match the hold time to the door’s opening/closing cycle for safe, smooth operation.
-
Easy Setup – Comes with a mounting bracket, 7m pre-wired cable, and LED status indicator; factory reset function simplifies troubleshooting.
Why RVP42-7M Outperforms Traditional Solutions in Factories
|
Feature |
RVP42-7M Radar Sensor |
Inductive Loop Detector |
PIR Motion Sensor |
|---|---|---|---|
| Detection Accuracy | 95% | ~85% (metal-dependent) | ~60–70% (heat-based) |
| False Alarm Rate | <1% | 3–10% | 5–15% |
| Response Speed | <50 ms | ~100 ms | 200–500 ms |
| Environmental Tolerance | IP65; -30°C to +60°C | Needs pavement cutting | Limited outdoors |
| Electromagnetic Immunity | Strong (motor/LED-proof) | Vulnerable to EMI | Vulnerable to heat changes |
| Installation Complexity | Surface mount, flexible | Complex trenching | Moderate |
| Maintenance Requirement | Very low | Coil inspection required | Calibration often needed |
Ideal Factory Applications
-
Rolling shutter doors in production lines
-
Cold storage warehouse entrances/exits
-
Loading docks with forklift traffic
-
Assembly plant access points
-
Tool rooms and parts storage areas
Installation Recommendations
-
Mount on a stable surface at 2–7 meters height, aimed at the expected vehicle/personnel path.
-
Avoid installing near large metal obstructions that could reflect or block radar waves.
-
Enable anti-EMI mode if working near motors, variable frequency drives, or high-frequency lighting.
-
Use lateral motion filter to ignore cross-traffic or overhead crane movement.
-
Select the correct sensitivity level to match site conditions.
What’s in the Box & Support
-
RVP42-7M radar sensor
-
Mounting bracket and fixing screws
-
7-meter pre-wired cable
-
User manual
-
Optional: OEM/ODM branding and custom firmware
-
Warranty: 2 years standard (extendable to 3 years)
-
Support: 24-hour hotline, 48-hour email response, remote configuration service
Direction Recognition
