Safety Light Curtain Sensors Manufacturer IP67 Waterproof with Blanking Function
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| رتبه IP | IP67 | عمل | خالی کردن |
|---|---|---|---|
| سنجش فاصله | 8 متر | مادی | آلیاژ آلومینیوم |
| نشان | مقاوم در برابر خوردگی | ولتاژ قدرت | DC12-24V |
| دمای عملیاتی | -20 ~ 60 ℃ | جریان فعلی | <50mA |
| خروجی | No/NC، COM | جریان کار | <20mA@DC12V |
| مشخصات | 2000*21*15 میلی متر | ||
| برجسته کردن | IP67 waterproof safety light curtain,light curtain sensor with blanking function,IP67 blanking light curtain sensor,light curtain sensor with blanking function,IP67 blanking light curtain sensor |
||
توضیحات محصول

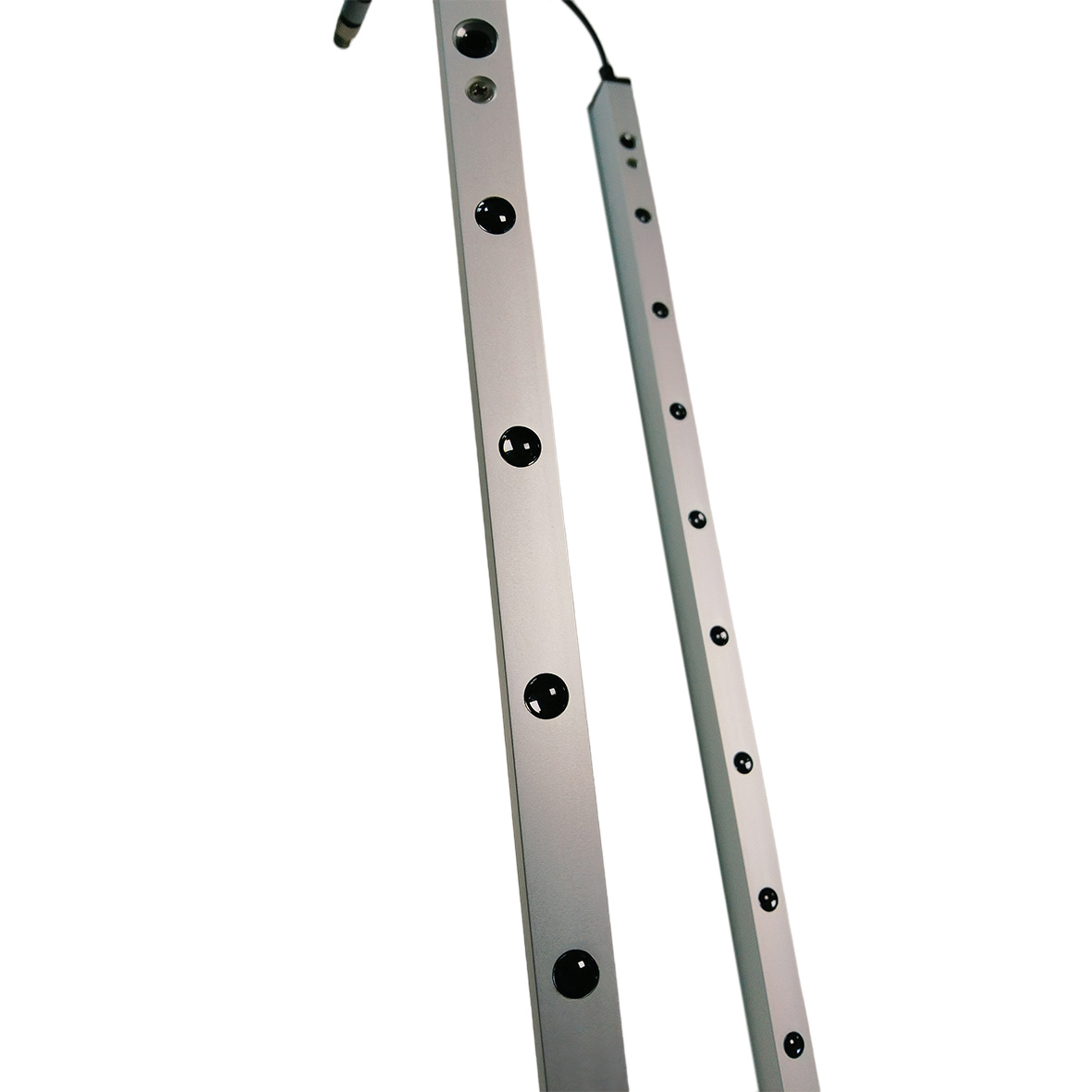

Shenzhen JUTAI IP67-Rated Waterproof Safety Light Curtains – Industrial-Grade Personnel & Equipment Protection
Discover Shenzhen JUTAI Communication Co., Ltd.’s industrial safety innovation: the IP67 Waterproof Safety Light Curtain Sensor, meticulously engineered for high-demand environments where dust ingress, moisture exposure, and extreme temperatures are daily challenges. Backed by a superior IP67 protection rating, these light curtains deliver uninterrupted, reliable operation across automated factories, high-throughput warehouses, refrigerated storage facilities, and high-speed production lines—making them a vital component in modern industrial safety systems.
Engineered for Versatility: 10 Model Configurations to Match Your Needs
Understanding that one size doesn’t fit all, JUTAI offers 10 distinct models with customizable beam quantities and barrier lengths to align perfectly with your operational requirements. Each variant is designed to provide optimal detection capabilities across varying distances and applications.
|
Model |
Barrier Length |
Number of Beams |
Maximum Detection Distance |
|---|---|---|---|
| CL05 - 4L | 500 mm | 4 beams | Up to 8 meters* |
| CL05 - 8L | 500 mm | 8 beams | Up to 8 meters* |
| CL10 - 8L | 1000 mm | 8 beams | Up to 8 meters* |
| CL10 - 16L | 1000 mm | 16 beams | Up to 8 meters* |
| CL15 - 8L | 1500 mm | 8 beams | Up to 8 meters* |
| CL15 - 16L | 1500 mm | 16 beams | Up to 8 meters* |
| CL20 - 8L | 2000 mm | 8 beams | Up to 8 meters* |
| CL20 - 16L | 2000 mm | 16 beams | Up to 8 meters* |
| CL25 - 8L | 2500 mm | 8 beams | Up to 8 meters* |
| CL25 - 16L | 2500 mm | 16 beams | Up to 8 meters* |
Detection range may vary based on environmental conditions and selected beam configuration.
Key Features That Set JUTAI Light Curtains Apart
IP67 Waterproof & Industrial-Strength Durability
Encased in a rugged, fully sealed aluminum alloy housing, these safety light curtains are built to withstand:
- •
Water jets and dust particles
- •
Sub-zero temperatures down to -25°C (perfect for cold storage applications)
- •
Harsh indoor/outdoor industrial settings, including food processing plants
Dual Operating Modes for Flexible Safety Integration
- •
Blanking Mode: Designed for door gap installations, it intelligently detects individual beam blockages and reverses door movement upon detecting an obstruction—ideal for slow-closing entryways.
- •
Normal Mode: Installed on either side of a doorway, it triggers an instantaneous door reopening signal the moment any beam is interrupted, ensuring rapid hazard response.
High-Precision Object Detection
- •
100mm beam spacing ensures accurate detection of personnel and objects, significantly reducing the risk of workplace accidents.
- •
Ultra-fast response time of ≤20ms, making it suitable for high-speed automation processes where split-second decisions matter.
Energy-Efficient Operation
- •
Consumes a mere ≤4W of power, contributing to lower energy bills and promoting sustainable manufacturing practices.
Custom Beam Configurations
- •
Select from 4 to 16 beams to tailor the detection zone precisely to your operational layout and safety needs.
Technical Specifications at a Glance
|
Parameter |
Specification |
|---|---|
| Product Type | Safety Light Curtain Sensor |
| Waterproof Rating | IP67 (Full dustproof and waterproof) |
| Operating Voltage | 24V DC ± 10% |
| Power Consumption | ≤ 4W |
| Response Time | ≤ 20 milliseconds |
| Beam Count (Example) | 8 beams (CL10-8L) / 16 beams (CL10-16L) |
| Detection Range | Up to 8 meters* (affected by environment & beams) |
| Beam Spacing | 100mm |
| Operating Temperature | -25°C to +75°C |
| Humidity Tolerance | 95% (non-condensing) |
| Housing Material | High-impact aluminum alloy |
| Output Type | NPN or PNP (selectable) |
| Detection Principle | Photoelectric (light-based object sensing) |
| Mounting | Adjustable bracket for easy setup & alignment |
| Safety Certification | CE Certified (Certification No.: CTC142H1007801SC) |
Ideal Applications Across Industries
Industrial Door Safety Solutions
- •
Rolling Doors: Prevent injuries during high-speed door operation in warehouses and factories.
- •
Sectional Doors: Safeguard vertical lift doors used for heavy equipment access.
- •
High-Speed Doors: Essential for cold storage, pharmaceutical, and food production facilities.
- •
Foldable Doors: Ensure safety in tight, high-traffic areas with fast-moving doors.
- •
Automatic Sliding Doors: Protect personnel in bustling industrial and commercial zones.
- •
Fire Doors: Enhance safety by detecting obstructions during critical closure sequences.
- •
Cold Storage Doors: Operate flawlessly in freezing conditions, resisting moisture and condensation.
Additional Industrial Use Cases
- •
Material Handling (Conveyor Systems): Prevent collisions between workers and moving machinery.
- •
Robotic Arms: Instantly halt robotic operations when human presence is detected.
- •
Automated Guided Vehicles (AGVs): Ensure safe navigation and obstacle avoidance in dynamic environments.
- •
Packaging Machinery: Stop high-speed packaging lines to protect both products and operators.
Why Choose Shenzhen JUTAI Communication Co., Ltd.?
Over a Decade of Industry Leadership
With more than 10 years of expertise in sensor manufacturing, JUTAI is a trusted name in delivering robust, efficient, and cost-effective safety solutions tailored for the industrial sector.
Personalized Support & Customization
- •
Benefit from free on-site assessments to evaluate your specific safety requirements.
- •
Receive bespoke product solutions designed to integrate seamlessly with your existing systems.
24/7 Dedicated Customer Assistance
Our round-the-clock support team is always ready to assist with technical inquiries, installation guidance, and troubleshooting, ensuring uninterrupted operational efficiency.
Get in Touch with JUTAI Today
Ready to enhance your industrial safety measures with premium-grade IP67 Waterproof Safety Light Curtains? Contact Shenzhen JUTAI Communication Co., Ltd. through the following channels:
- Website: www.accesssecuritysolution.com
