UAE region Infrared Photocell Sensor Safety Protection for Boom Barriers Automatic Gates
جزئیات محصول
| رتبه بندی IP | IP65 | کد HS | 8531901000 |
|---|---|---|---|
| اندازه بسته بندی | 12.00 * 11.70 * 4.30 سانتی متر | وزن ناخالص بسته | 0.150 کیلوگرم |
| نوع تشخیص | آشکارساز فوتون | تایپ کنید | سیمی |
| برجسته کردن | سنسور فتوسل مادون قرمز امارات,سنسور ایمنی مانع بازویی,سنسور حفاظت از درب اتوماتیک |
||
توضیحات محصول
UAE Region Infrared Photocell Sensor Safety Protection for Boom Barriers Automatic Gates
Product Overview
The JUTAI Anti-Strong Light Infrared Photocell Sensor is a high-performance safety device engineered for boom barriers, automatic gates, and access control systems. It detects interruptions in the infrared beam to trigger instant responses (e.g., stopping or reversing gates), effectively preventing collisions with vehicles, pedestrians, or objects.
Key Features
- Anti-Strong Light Performance: Integrates a narrow infrared beam and amplifier to resist interference from intense sunlight
- Integrated Design: Combines transmitter and receiver in one unit, simplifying installation
- Self-Detecting Function (IR-20 Model): Automatically stops and retracts gates/barriers when beam is blocked
- Wide Detection Range: 2-20 meters, adaptable to various scenarios
- Durable Construction: IP65 waterproof and dustproof rating with UV resistance
- High Compatibility: Utilizes German-grade infrared lamps and Japanese Omron relays
Technical Specifications
| Parameter | Specification |
|---|---|
| Detection Principle | Infrared beam interruption |
| Detection Range | 2-20 meters |
| Mounting Height | 20-40cm above ground |
| Light Resistance | Anti-strong light (resists intense sunlight) |
| Protection Rating | IP65 (waterproof, dustproof) |
| Operating Temperature | -20°C to +60°C |
| Relay Type | Japan Omron relay |
| Infrared Lamp Brand | German-grade |
| Function | Self-detecting (IR-20 model) |
| Application | Boom barriers, automatic gates, pedestrian gates, anti-burglar systems |
| Package Inclusion | 1 x Sensor, English user manual (with diagrams) |
Additional Technical Parameters
| Feature | Specification |
|---|---|
| Power Supply | 12-24VAC/VDC |
| Max. Range | 20 Meters |
| Operating Temperature | -10 to +60°C |
| Max. TX Working Current | 25mA |
| Max. RX Working Current | 35mA |
| Max. Relay Contact | 500mA at 48VAC/VDC |
| IP Rating | IP65 with rubber |
Application Scenarios
- Boom barriers and parking lot gates
- Automatic vehicle and pedestrian gates
- Residential and commercial entrance security
- Anti-burglar detection for windows/doors
- Industrial access control systems

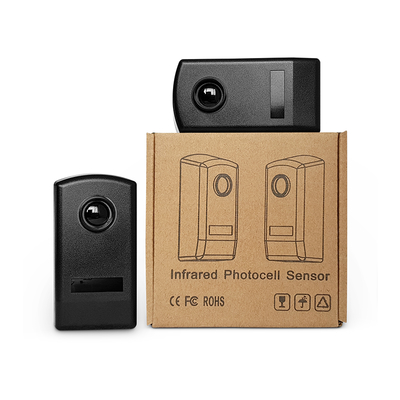

Product Images
JUTAI Service
- Accept OEM, ODM & silk-screen printing you logo on the shell
- Response in 2 hours
- Experienced R&D staff
- Professional SMT equipments
- Accept payment via T/T, Paypal, Western Union
- Delivery by DHL, UPS, FEDEX, TNT or by sea as your requirements
